Recombinant Protein Production:Mammalian Expression System

sgene

Last updated 2025-04-27

1. Introduction

Proteins have captivated scientists for centuries, with their study tracing back to the late 18th century. In 1789, French chemist Antoine Fourcroy described plant-derived albumins substances we now recognize as proteins. As the field progressed, major discoveries defined our understanding of protein chemistry. The identification of peptide bonds and the emergence of X-ray crystallography allowed researchers to probe protein structures at atomic resolution.

In 1930, William Astbury described the α- and β-forms of keratin, hinting at the idea of secondary structure.
By 1934, Dorothy Crowfoot Hodgkin and John Desmond Bernal introduced methods that preserved the native structure of proteins during X-ray analysis.
In 1958, John Kendrew resolved the first three-dimensional structure of myoglobin—ushering in modern structural biology.

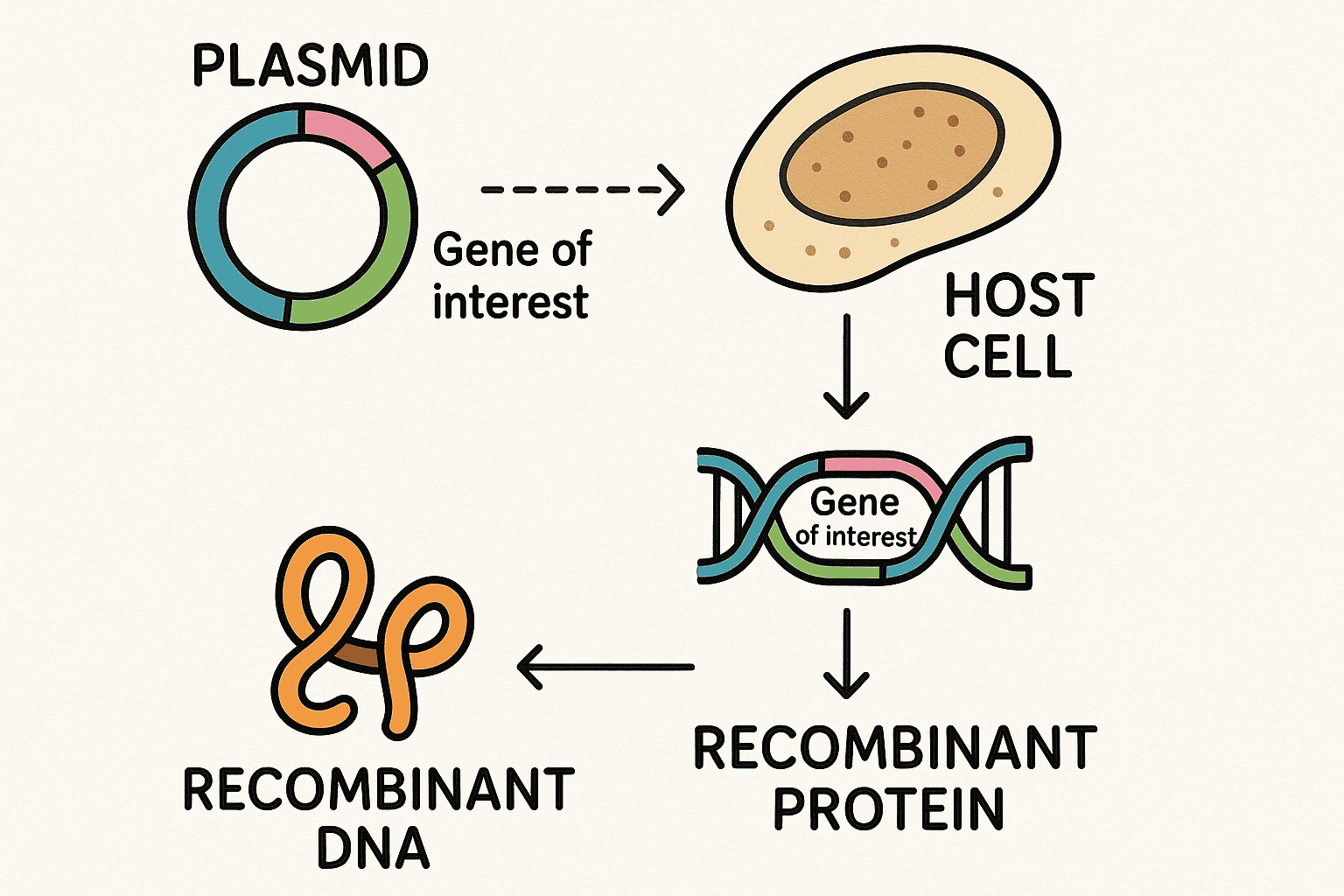

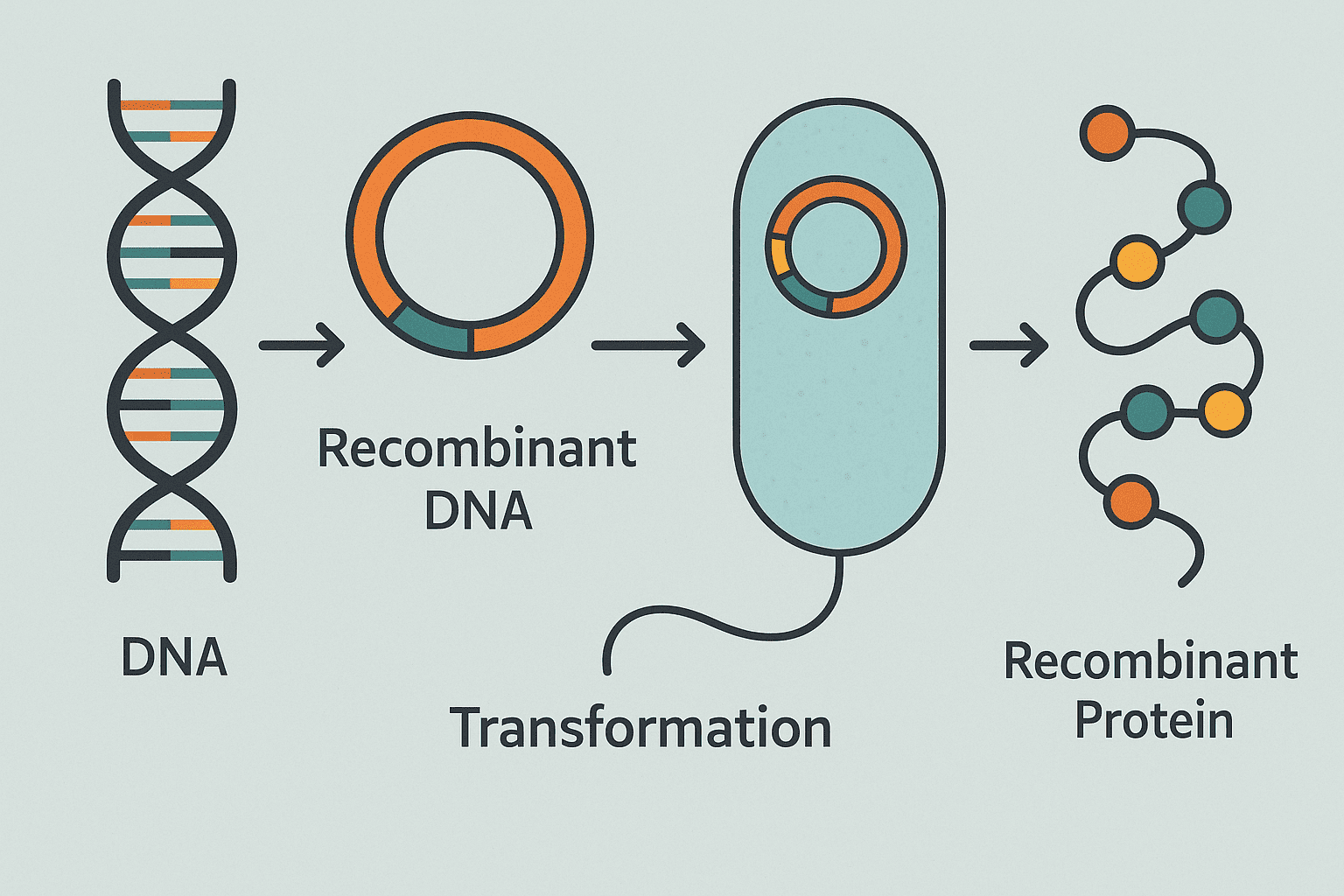

A pivotal shift occurred in the 1970s with the advent of recombinant DNA technology, revolutionizing protein production. Previously, proteins were extracted from biological tissues an approach limited by low yields and restricted access to complex or rare proteins. With the development of molecular cloning and gene expression tools, scientists could now produce specific proteins in host organisms. In 1977, the first recombinant protein—somatostatin—was successfully expressed in Escherichia coli. Over time, E. coli became the dominant system for protein production due to its:

Cost-effectiveness and ease of cultivation,
Rapid growth rates,
High yields of small, soluble proteins suitable for structural studies.

However, despite the success of bacterial expression systems, their limitations became evident when tackling large, multidomain proteins or proteins requiring post-translational modifications.

Recently, alternative host systems such as insect and mammalian cells have gained popularity to address the growing need for producing larger, more complex proteins. While bacterial systems like E. coli have been instrumental in advancing our understanding of basic protein structure and function, they often fall short when researchers attempt to express:

Full-length human proteins,
Multisubunit complexes,
Proteins requiring glycosylation, disulfide bond formation, or other post-translational modifications.

Prokaryotic systems lack the advanced intracellular machinery needed to accurately mimic the natural folding, assembly, and modification processes of eukaryotic cells. As a result, eukaryotic expression systems, particularly mammalian cells, are increasingly preferred for producing biologically active proteins that closely resemble their native counterparts.

Mammalian expression systems provide a near-physiological environment for protein synthesis, ensuring:

Proper protein folding,
Authentic post-translational modifications,
Assembly of multi-subunit complexes,
Higher chances of obtaining fully functional recombinant proteins.

2. Host Expression Systems

Choosing the right host expression system is one of the most critical decisions in recombinant protein production. Each system—ranging from bacterial to mammalian cells—has its own set of advantages and limitations that must be matched to the structural and functional requirements of the target protein. The goal is to balance scalability with protein complexity, ensuring efficient expression without compromising functionality.

Host systems commonly used include:

Bacteria (e.g., E. coli),
Yeast (e.g., Pichia pastoris),
Insect cells (e.g., Sf9, Sf21),
Mammalian cells (e.g., HEK293, CHO),
Plant cells and cell-free systems (less common but emerging).

Key Factors to Consider Scalability:

Scalability refers to the system’s ability to increase protein production yield without significant cost or complexity. Bacterial systems are the most scalable, offering fast growth, low-cost media, and straightforward culturing techniques. This makes them ideal for producing large amounts of simple proteins.

Protein Complexity:

Proteins that are large, multimeric, or require post-translational modifications (e.g., glycosylation, disulfide bonds) typically need more sophisticated folding environments. Eukaryotic systems, especially mammalian cells, are better suited for this due to their complex chaperone and enzymatic machinery.

2.1 Mammalian Expression Systems

Mammalian cells represent the gold standard for producing recombinant human proteins, primarily because they provide the most native-like cellular environment for accurate protein folding, post-translational modification, and functional activity. Unlike simpler systems, such as E. coli, mammalian platforms are better suited to handle the structural and functional complexity of human proteins.

The low success rate (as low as 9–27%) of soluble human protein production in bacterial systems highlights their limitations.
The human proteome is far more complex than that of prokaryotes:

40× larger overall.
Double the average polypeptide length.
3× more frequent occurrence of multidomain proteins.
Higher levels of intrinsically disordered regions, repeats, and unique protein folds.

To manage this complexity, mammalian cells rely on:

Advanced molecular chaperones to support proper protein folding.
A broad array of post-translational modification (PTM) capabilities, such as glycosylation and phosphorylation.
Slower translation rates (4–6× slower than bacteria), allowing co-translational folding to occur more efficiently.

These unique cellular conditions make mammalian systems the most favorable choice for expressing functional recombinant mammalian proteins.

2.2 Expression Strategies in Mammalian Systems

Despite their advantages, mammalian cells also present certain challenges, particularly in genetic manipulation and transgene expression. Unlike bacterial systems, they lack robust plasmid replication tools and high-strength promoters, which necessitates alternate approaches for achieving efficient protein production.

There are two main expression strategies:

1. Stable Expression:

The transgene is integrated into the chromosomal DNA.
Ensures long-term expression and is ideal for consistent, large-scale production.

2. Transient Expression:

Involves the temporary introduction of a large number of plasmids.
Provides rapid, high-level expression for short durations—commonly used for research-scale protein yields or proof-of-concept studies.

By optimizing variables such as cell line selection, media composition, vector design, gene delivery method, and purification strategy, researchers can establish reliable mammalian systems capable of yielding milligram to gram-scale quantities of fully functional recombinant proteins.

Once a dependable protocol is in place, mammalian expression platforms unlock the full potential of protein science—bridging the gap between discovery and therapeutic application.

3. General Principles to Mammalian Cell Culture

Recent progress in cell culture methodologies and commercialization has opened up a practical pathway for the establishment and maintenance of mammalian recombinant protein production within academic environments. This section presents the essential design components of a laboratory space dedicated to culturing mammalian cells, the methods that promote their healthy growth, and sterile techniques used to prevent contamination of the cultures.

3.1 Tissue Culture Room Configuration

Setting up infrastructure for mammalian cell culture is relatively straightforward and can be accommodated in compact spaces. Maintaining cell lines typically requires a low-traffic, controlled environment that is physically separated from areas where microorganisms like bacteria or yeast are handled. Essential to this setup is a culture hood—either a biological safety cabinet or a laminar flow hood—which ensures protection of both the cell cultures and the researcher.

The hood size should be chosen based on workspace availability and institutional safety standards. For cell growth, incubators with precise control over humidity and CO₂ levels are necessary, and equipment such as microscopes, centrifuges, and cryogenic storage are critical for daily operations and long-term cell preservation.

A low-traffic, segregated room helps prevent contamination from microbial experiments.
A culture hood (biosafety cabinet or laminar flow) protects both cultures and users.

A 6-foot hood is optimal for space and sterility.
A 4-foot hood is suitable for smaller lab spaces.

Humidified CO₂ incubators are required for adherent cell culture.
CO₂-controlled shaker-incubators support suspension cultures.
Compact shaker systems with integrated shelves can handle both cell types simultaneously.
Additional essentials include:

Cell counter
Inverted light microscope
Water bath
Centrifuge

A cryogenic storage system (~–150 °C) is crucial for preserving cell lines.

3.2 Culturing Healthy Proliferative Cells

Optimal laboratory conditions for mammalian cell growth are those that closely simulate their physiological environment. Human cell cultures, for instance, are typically maintained at 37 °C to mimic body temperature. The process begins with establishing a maintenance culture from a low-passage parental stock, usually obtained from a trusted commercial source or a certified cell bank. The cryopreserved sub-stock is thawed and seeded into pre-warmed, cell-specific media. During the early stage, cells undergo an adaptation or lag phase where recovery from freeze-thaw stress and nutrient adjustments occur. In cases where the preservation medium differs from the working medium, a gradual adaptation through blended media is necessary. Once adapted, the cells enter a regular propagation cycle, involving sub-culturing based on growth profiles. Healthy cultures are maintained in the logarithmic (log) phase to ensure steady proliferation.

Ideal culture conditions replicate the native environment; for human cells, this means maintaining 37 °C in a CO₂ incubator.
Maintenance culture starts with a low-passage cryopreserved sub-stock from a reliable cell bank.
Initial seeding involves rapid thawing and transfer into fresh, pre-warmed, cell-specific medium.
Adaptation phase (lag phase) is when cells recover from thawing stress and adjust to the new medium.

May require gradual media transition if preservation and working media differ.

Cell propagation involves repeated passaging once high density is reached to maintain health and viability.
Growth profiles help determine optimal passage timing:

For suspension cells: density is measured as cells/mL.
For adherent cells: density is measured as percent confluency.
Four key growth phases: lag, log, stationary, death.

Logarithmic phase is ideal for passaging and maintaining healthy, active cultures.
Culture age and passage number must be documented to avoid issues from over-passage (e.g., instability or decline in protein yield).
Trypan blue exclusion is used to assess viability:

Cells that absorb the dye are non-viable.
Cultures with >10–20% dead cells should be discarded.

Suboptimal passages or over-confluence can impair viability and stability.
When necessary, restart the culture using a low-passage sub-stock to ensure consistent performance.

Monitoring passage number and viability is essential, as older cultures may develop genetic instability, affecting recombinant protein production. Trypan blue staining is commonly used to assess cell viability, and suboptimal cultures should be replaced with fresh low-passage stocks when needed.

3.3 Ensuring a Sterile Environment

Maintaining a sterile environment is essential in mammalian cell culture, especially since these cultures are often grown without antibiotics. The risk of contamination from airborne microbes, reagents, or poor handling practices is high, and even minor lapses in sterile technique can compromise entire experiments. While contamination can't be eliminated entirely, it can be significantly reduced by following proper aseptic procedures.

Key Practices and Indicators:

Signs of contamination:

Cloudy media
Sudden color changes in phenol red pH indicator
Slower growth or altered morphology (especially with mycoplasma)

Detection of mycoplasma:

Often invisible under light microscopy
Requires dedicated mycoplasma testing kits

To prevent cross-contamination:

Culture only one cell line at a time
Disinfect the culture hood between uses

Cell identity and verification:

Learn the morphology and growth traits of your specific cell line
Use karyotyping, isoenzyme analysis, or STR profiling to verify lines

Labeling and tracking:

Implement a consistent labeling system for cryopreserved stocks
Clearly document the identity and storage location of each line

Observing the growth behavior of cultures is critical; unusual growth patterns or sudden deviations may signal contamination. Mycoplasma contamination is especially difficult to detect because it doesn’t always alter the appearance of the culture and cannot be seen with standard microscopy. Ensuring cell line authenticity and preventing cross-contamination are also vital to maintain experimental reliability and reproducibility.

4. Mammalian Cell Lines

HEK293 and CHO cells are the most widely used mammalian expression hosts for recombinant protein production. HEK293, derived from human embryonic kidney cells, was immortalized using adenovirus 5 (Ad5) DNA, which enhances its ability to proliferate and evade apoptosis. CHO (Chinese Hamster Ovary) cells, developed in the 1950s, became prominent for genetic research and later evolved into preferred models for recombinant protein expression. By the late 1980s, CHO cells received FDA approval for producing biotherapeutics and remain a gold standard in pharmaceutical manufacturing. Both HEK293 and CHO are adaptable to suspension cultures, allowing scalable protein production in high-density systems. Their compatibility with a range of commercial media and transfection reagents, along with short doubling times and efficient DNA uptake, make them ideal for protein expression.

Key Comparisons and Features:

1. HEK293 (Human Embryonic Kidney):

Immortalized using adenovirus 5 DNA
Strong DNA uptake and plasmid transgene expression
Preferred in academic research
Variant: HEK293F (adapted for suspension and high-density growth)
Glycosylation-deficient variant: HEK293S GnTI-

2. CHO (Chinese Hamster Ovary):

Developed in the 1950s; FDA-approved for biotherapeutics
Faster growth (17 hr doubling time vs. HEK293’s 24 hr)
High-density growth and industrial scalability
Variant: CHO Lec3.2.8.1 (uniform glycosylation)
Widely used in pharmaceutical production due to safety and human-like modifications

3.Shared Advantages:

Adaptable to suspension culture
High transfection efficiency
Compatible with specialized media and reagents
Consistent recombinant protein yields in scalable systems

However, the choice between them is still empirical and must be guided by the needs of the specific protein and project goals. HEK293 excels at plasmid-driven transgene expression, while CHO cells offer faster growth and safer profiles for therapeutic applications. Derivatives such as HEK293F and glycosylation-deficient clones (e.g., HEK293S GnTI- and CHO Lec3.2.8.1) further extend the functional versatility of these platforms.

5. Culture Medium

The composition of culture media is one of the most critical elements in establishing a reliable and efficient workflow for mammalian cell cultivation. Media formulations are intended to support cell viability and growth in vitro, but even minor changes in their composition can significantly impact transfection efficiency, cell density, and overall health. Suboptimal media can cause cellular stress and reduce the availability of resources needed for efficient ribosome production and recombinant protein synthesis. Therefore, careful selection of the medium—based on the specific needs of the cell line and intended applications—is essential.

5.1 Media Components and Considerations:

Energy Source: Carbohydrates like glucose
Protein Synthesis: Amino acids
Growth Support: Vitamins and growth factors
Enzyme Function & Osmotic Balance: Inorganic salts
Enhancements (optional): Hormones, minerals, proteins, protease inhibitors

5.2 Media Types:

Natural Media: Typically includes biological fluids like blood plasma or fetal bovine serum (FBS); rich but variable in composition.
Synthetic Media:

Serum-containing: Offers added nutrients and growth factors.
Serum-free: Provides consistency and reduced batch variability.

While technical guidance from manufacturers is helpful, empirical testing is often necessary to find the optimal formulation. Synthetic media, both serum-containing and serum-free, are widely preferred for consistency, while natural media such as serum introduce variability despite their growth-promoting benefits.

To eliminate variability caused by animal-derived serums, serum-free synthetic media are supplemented with well-defined components that replicate the growth-enhancing effects of serum. These include chemically defined media, which contain known concentrations of purified proteins, and protein-free media, which use non-protein additives to support cell health. Protein-free formulations are particularly advantageous in recombinant protein production, as they reduce downstream purification complexity. The choice between these synthetic options depends on the target application and the requirements of specific cell lines.

5.3 Synthetic Media Types:

1. Chemically Defined Media:

Contains purified proteins with known composition
Common protein additives:

Albumin – Binds toxins
Fibronectin – Promotes attachment and spreading
Transferrin – Iron transport
Aprotinin – Protease inhibitor

2. Protein-Free Media:

Lacks protein additives; uses non-protein alternatives like cholesterol
Ideal for recombinant protein purification due to minimal background proteins
Typically tailored to specific cell types

Additionally, media can be optimized further by incorporating various supplements that support cellular energy, buffering capacity, and structural protection. Additives like L-glutamine, glucose, HEPES, and Pluronic F-68 are commonly used to improve performance, especially in high-yield or stress-prone culture systems.

5.4 Common Media Additives:

1. L-glutamine:

Essential for protein synthesis and energy
Unstable in solution; may be replaced with alanyl-L-glutamine or glycyl-L-glutamine

2. Phenol Red:

pH indicator:
Red at pH 7.4 (neutral)
Yellow (acidic), Fuchsia (basic)

3. HEPES Buffer:

Enhances buffering alongside sodium bicarbonate

4. Pluronic F-68:

Prevents shear damage and surface adhesion in suspension cultures

5. Glucose:

Primary energy source; used at:
~5.5 mM (normal physiological)
Up to 30 mM (for high-demand applications)

6. Sodium Pyruvate:

Supports glycolysis and enhances energy metabolism

Each component serves a distinct function, and their inclusion or substitution must be carefully matched to the needs of the culture and the experimental goals.

6. Gene Delivery

Gene delivery is a fundamental step in mammalian recombinant protein expression, as it determines how the transgene will enter the host cells and whether protein expression will be stable or temporary. Depending on the application, researchers can opt for stable integration—where the transgene is inserted into the host genome—or transient transfection, which results in short-term expression. A key factor to consider is the potential toxicity of the target protein, as excessive expression can place a significant metabolic burden on the host cell, leading to impaired growth or viability.

1. Expression method options:

Stable expression: Long-term expression via chromosomal integration
Transient transfection: Temporary expression using episomal plasmids

2. Protein toxicity:

Overexpression can stress cells or inhibit growth
Toxic proteins may express at much lower levels in stable lines

3. Construct design:

Must align with delivery method (e.g., promoter choice, selection markers, integration elements)

Stable expression systems can often match transient systems in terms of protein output, but toxic proteins—such as nucleases—are generally produced at lower yields in stable systems. For this reason, it is essential to evaluate expression levels and cellular tolerance early in experimental planning and to design gene constructs that are compatible with the selected delivery strategy.

6.1 Design of Plasmid DNA That Encodes Transgenes

Plasmid DNA used in mammalian protein expression is commonly referred to as a “shuttle vector” because it contains dual elements that allow replication in both bacterial and mammalian cells. These vectors are engineered for protein expression in mammalian systems and typically include a bacterial origin of replication and an antibiotic resistance gene for amplification in E. coli. The same molecular cloning strategies used for bacterial plasmids—such as restriction enzyme digestion, ligation, and recombination—are also used to build or modify mammalian expression vectors. Once constructed, plasmids are amplified and purified using commercial DNA preparation kits at various scales.

Plasmid Features and Design Considerations:

1. Vector Structure:

Bacterial origin of replication + antibiotic resistance gene
Mammalian expression cassette with transgene under control of strong promoter

2. Common Promoters:

CMV promoter – High expression in most mammalian cells
RSV and EF1α – Moderate but consistent expression across various cell types
Tet-on promoter system – Doxycycline-inducible, suitable for toxic proteins

3. Cloning & Preparation:

Techniques: Restriction enzyme digestion, gateway recombination, ligation-independent cloning
DNA scales: Miniprep to gigaprep (up to 10 mg yield)
Resources: Addgene, DNASU

4. Affinity Tags & Cleavage Sites:

Tags: Added to N- or C-terminus; enable single-step purification
Dual tagging (optional): Helps detect full-length proteins vs. degradation products
Protease cleavage sites: TEV or HRV3C inserted to allow tag removal post-purification

The transgene is placed downstream of strong promoters, such as the CMV promoter, to drive high expression in a wide range of cell types. Alternative promoters like RSV or EF1α may be selected based on the target cell line or experimental needs. When protein toxicity is a concern, inducible systems like the tetracycline-regulatable promoter (Tet-on) offer controlled expression. To facilitate downstream purification, plasmid constructs often include affinity tags and site-specific protease cleavage sites, allowing efficient isolation and optional removal of the tag after purification. These design features make shuttle vectors highly adaptable for both research and therapeutic protein production.

6.2 DNA Delivery via Transfection

Once a plasmid vector is constructed, the next critical step is delivering the transgene into mammalian cells—a process known as transfection. Because plasmid DNA is large and negatively charged, it cannot penetrate the cell membrane without assistance. Mammalian cells are naturally resistant to foreign DNA uptake due to built-in antiviral defenses, making transfection a central challenge in recombinant protein production. HEK293 and its derivatives are popular cell lines for this purpose due to their high transfection susceptibility.

Method: Calcium-Phosphate Transfection

1. Overview:

Mix transgene DNA with calcium chloride and phosphate buffer.
A fine calcium–phosphate–DNA precipitate forms and is added to cell cultures.

2. Enhancements:

Optional steps like glycerol shock or chloroquine treatment improve uptake.

3. Advantages:

Inexpensive and scalable

4. Limitations:

Generally low efficiency, especially in non-cancerous (non-tumor) cell lines
Not ideal for high-yield recombinant protein expression without further optimization

The choice of transfection method depends on the desired protein yield, the tolerance of the cell line, and available resources. During transfection, cells divert energy from division to protein synthesis, often increasing their doubling time. In contrast, non-transfected cells continue dividing and can outcompete the productive cells for nutrients. Therefore, optimizing transfection efficiency is vital to maximize recombinant protein yield and maintain a productive culture environment.

6.3 Viral DNA Delivery

Viral vectors are powerful tools for introducing transgenes into mammalian cells, offering high efficiency and low toxicity compared to some chemical transfection methods. Viruses can be engineered to eliminate pathogenic components while retaining their ability to deliver recombinant genes. Among the most commonly used viral systems are Baculovirus (BacMam), Lentivirus, and Adeno-associated virus (AAV)—each with distinct advantages in terms of capacity, safety, and duration of expression.

6.4 Viral Systems for Gene Delivery:

1. BacMam (Baculovirus in Mammalian cells):

Non-replicating in human cells → BSL1 safe
High transduction efficiency, low cytotoxicity
Can carry large genes (>38 kb)
Limitation: complex production process in insect cells

2. Lentivirus:

Integrates into host genome → long-term expression
Can deliver genes up to 10 kb
Requires BSL2 safety level due to human cell infectivity
Risk of genomic disruption after multiple insertions

3. Adeno-Associated Virus (AAV):

Does not integrate; remains episomal
Low toxicity, suitable for high MOI
Small payload capacity (~4.5 kb)
Less ideal for sustained high expression

While transfection often achieves higher expression levels, viral delivery methods are favored for their stability and reduced cytotoxicity, especially in sensitive or hard-to-transfect cell lines.

7. Transient Versus Stable Expression

Recombinant protein expression in mammalian systems can be achieved through either transient or stable expression strategies, each tailored to different experimental goals. Transient expression involves introducing transgenes into cells for short-term, high-level protein production, typically after cells have reached optimal density. This method is ideal for rapid protein production but requires repeated transfections. In contrast, stable expression entails integrating the transgene into the host genome, enabling continuous protein production over extended periods.

1. Transient Expression:

Rapid and high-yield expression
Suitable for short-term or pilot studies
Requires repeated DNA transfection
Not ideal for toxic proteins over long durations

2. Stable Expression:

Transgene is integrated into the genome
Enables long-term, consistent protein production
Requires more time to establish a stable cell line
Preferred for routine, large-scale, or commercial use

While this approach requires more time to establish, it eliminates the need for repeated DNA delivery and is better suited for large-scale or long-term production. The decision between these two methods depends on several factors, including protein toxicity, production scale, and frequency of use.

7.1 Toxicity Considerations

A major limitation in recombinant protein production is the cellular toxicity that can result from high expression levels. This toxicity may arise from the intense metabolic demand placed on the cell or from direct interactions between the recombinant protein and essential cellular components. Such effects often reduce cell viability or growth rate, making it difficult to maintain stable expression.

1. Sources of toxicity:

Metabolic burden from excessive protein synthesis
Interference with vital cellular components (e.g., DNA, cytoskeleton)

2. Approaches to reduce toxicity:

Redirect protein to less harmful compartments (e.g., cytoplasm vs. nucleus)
Use of catalytically inactive or localization-deficient mutants

4. Limitations:

Reduced functionality of inactive mutants in downstream assays
Toxicity may prevent stable cell line development altogether

5. Solution:

Employ transient transfection when stable expression is not viable

In some cases, toxicity can be mitigated by altering the subcellular localization of the protein or by using non-functional mutants that reduce harmful interactions. However, when toxicity cannot be adequately managed, transient transfection becomes the more viable strategy for achieving protein expression without long-term cellular damage.

7.2 Stable Transfection

Stable transfection offers a powerful approach for establishing mammalian cell lines that continuously express recombinant proteins. In this process, a plasmid containing the gene of interest is transfected into the cells, followed by extended antibiotic selection. While most cells lose the plasmid over time and die from antibiotic exposure, a rare subset survives due to the accidental integration of the plasmid into the host genome—typically through an error in DNA repair.

Process Overview:

DNA integration occurs randomly during rare cellular repair events.
Surviving cells stably inherit the transgene and antibiotic resistance.

Limitations:

Antibiotic resistance ≠ guaranteed protein expression
Gene expression depends on chromatin environment at the integration site

Screening Techniques:

Clonal selection to isolate high producers
FACS if using fluorescent tags or polycistronic constructs

These cells stably propagate the transgene through cell division. However, antibiotic resistance alone does not guarantee protein expression, since the plasmid may integrate into transcriptionally inactive regions of the genome. Therefore, additional screening methods are required to identify high-expressing clones.

7.3 Factors to Weigh for Stable vs. Transient Expression Approaches

Selecting between transient and stable expression strategies depends on the nature of the recombinant protein, intended application, and available resources. Transient transfection is ideal for producing small amounts of protein quickly or when the protein is toxic to cells. On the other hand, stable expression is more suitable when a consistent, long-term supply of protein is needed—especially if the protein is non-toxic or its toxicity can be controlled.

Choose transient expression when:

Protein is toxic to cells
Only small or infrequent protein quantities are needed
Rapid experimental timelines are required

Choose stable expression when:

Long-term, consistent protein production is necessary
The protein is non-toxic or manageable
Scalability and cost efficiency are priorities

Other considerations:

Stable line development starts with transient transfection
Scaling transient methods increases reagent costs
Resources, time, and lab infrastructure influence strategy choice

In some cases, researchers initiate both approaches in parallel: they perform a transient transfection and then transition part of the transfected population into selection for stable expression. Additionally, scalability and cost efficiency are vital considerations, as transient systems require more reagents and labor as culture size increases.

Protein_Expression

8. Post-Translational Modifications

Post-translational modifications (PTMs) are covalent alterations that occur after a protein has been synthesized by ribosomes. These modifications are crucial for the stability, localization, activity, and overall function of many eukaryotic proteins. Mammalian cells, in particular, are capable of producing proteins with human-like PTMs, making them the system of choice for expressing recombinant human proteins that require specific structural or functional modifications.

1. Common types of PTMs include:

Phosphorylation
Glycosylation
Acylation (e.g., acetylation, myristoylation, prenylation)
Methylation
Disulfide bond formation
Ubiquitination, SUMOylation, NEDDylation

2. Importance of subcellular localization:

Proteins in the endoplasmic reticulum can form disulfide bonds and undergo N-linked glycosylation.
Cytoplasmic expression may prevent proper folding and modification.
Mislocalization (e.g., removal of nuclear localization signals) can inhibit modifications like phosphorylation.

3. Protein cofactors:

Some proteins require cofactors—either covalently or noncovalently attached—for proper enzymatic activity.

4. Controlling PTMs during purification:

PTMs such as phosphorylation and SUMOylation require ATP for addition but not for removal.
Upon cell lysis, ATP depletes rapidly while removal enzymes (e.g., phosphatases) remain active.
Use PTM inhibitors in lysis and purification buffers to preserve desired modifications.

5. Strategic mis-targeting:

In some cases, redirecting a protein to a different compartment may be intentional to alter the PTM profile.

Other systems like yeast and insect cells also carry out PTMs, but often with differing specificities that can alter protein behavior. For many applications, the ability to reproduce accurate PTMs is critical for recombinant protein function.

9. Protein Isolation

Once recombinant proteins are expressed in mammalian cells, the next critical step is their extraction and purification. This is typically achieved using affinity tagging, where a short amino acid sequence is genetically fused to the protein of interest. These tags enable specific binding to a ligand immobilized on a solid-phase resin such as sepharose. The tagged protein can then be isolated from either cell lysates or culture media in a single-step purification process.

Affinity tags bind tightly to immobilized ligands not found in other cell components, enabling selective purification.
Elution is achieved either by:

Introducing a competing soluble ligand, or
Using site-specific proteolytic cleavage to remove the affinity tag.

The ideal tagging system:

Binds nearly all the recombinant protein.
Minimizes contamination from other proteins.

While bacterial systems frequently use these tag–resin combinations, they are also effective in mammalian systems, albeit with added complexities:

Lower protein expression levels.
A more diverse and complex cellular proteome.

This method is widely favored for its simplicity and specificity, especially when working with complex mammalian cell systems.

9.1 Ligand Affinity Tags

Affinity tags composed of protein domains are widely used due to their strong and specific binding to small immobilized ligands. These systems are robust and can endure harsh cleaning procedures without damaging the functional ligand. Typically, the recombinant protein is fused with an affinity tag such as Glutathione S-Transferase (GST) or Maltose Binding Protein (MBP) to enable efficient purification.

1. GST and MBP Tags:

GST binds glutathione; MBP binds maltose.
Both tags provide high-affinity, selective interaction with their ligands on resin supports.

2. Stability and Folding:

MBP lacks cysteine residues and folds efficiently in both reducing environments (cytoplasm) and oxidizing compartments (e.g., ER).
This makes MBP suitable for use in diverse cellular environments.

3. Functional Impact Considerations:

GST forms dimers, which could alter the behavior of the fusion protein.
MBP is a large tag (~45 kDa) and may interfere with the native function of the target protein.

4. Tag Removal Strategy:

A protease recognition sequence (e.g., TEV, Thrombin, or PreScission) is inserted between the affinity tag and the target protein.
This allows for site-specific cleavage of the tag to avoid interference in downstream applications.

9.2 Antibody-Based Affinity Tags

Antibody-based affinity tags exploit the strong and highly specific binding between antibodies and their target epitopes. These systems utilize antibodies that recognize short, linear polypeptide sequences—commonly known as epitope tags—fused to the recombinant protein. This method is particularly valued for its specificity and minimal interference with protein function.

Common Tags and Antibodies:

Widely used epitope tags include myc, FLAG, and HA.
Corresponding monoclonal antibodies are immobilized on solid-phase resins (e.g., sepharose) to capture the tagged protein.

Tag Positioning and Compatibility:

Epitope tags are generally fused to the N- or C-terminus of the protein.
Their small size helps to minimize disruption to the structure or function of the protein.

Elution Process:

The recombinant protein is eluted by applying a high concentration of synthetic peptide that mimics the tag sequence, effectively competing off the bound protein.

Limitations:

The cost is relatively high due to the large quantities of antibody required to prepare the affinity resin.
Regeneration of antibody-based resins is limited, reducing their reusability and long-term cost-effectiveness.

9.3 Peptide Affinity Tags

Peptide-based tags offer a compact and efficient strategy for purifying recombinant proteins. The most widely used among these is the His-tag, composed of six or more histidine residues, which exhibits high affinity for Ni-NTA (Nitrilotriacetic Acid) resin. Its simplicity and versatility make it a standard in both bacterial and eukaryotic expression systems.

I Characteristics and Benefits of the His-tag System:

1. Tag Placement Flexibility:

Can be fused to the N-terminus, C-terminus, or even inserted internally within the recombinant protein.

2. Stability and Compatibility:

Maintains binding under a wide range of buffer conditions.
Remains effective under denaturing conditions, including 1% SDS or 8 M urea.
Allows mild elution using imidazole, preserving protein integrity.

II Limitations in Mammalian Systems:

1. High Off-Rates:

His-tags exhibit relatively weak binding kinetics, which can result in loss of yield, especially when protein expression levels are low.

2. Background Contamination:

Many endogenous mammalian proteins contain polyhistidine or histidine-rich sequences, leading to non-specific binding and increased background noise during purification from mammalian lysates.

Despite these drawbacks, the His-tag remains a preferred option for many researchers, particularly in cases where the recombinant protein is highly expressed, and background interference is minimal or manageable.

9.4 Fluorescent Proteins as Affinity Tags

Fluorescent proteins, particularly green fluorescent protein (GFP) and its derivatives, are widely used as fusion tags in recombinant protein production. When paired with camelid single-domain antibody (nanobody) resins, these fluorescent tags provide a powerful, cost-effective strategy for both real-time monitoring and affinity purification.

I Advantages of GFP-Nanobody Affinity Systems:

1. Real-Time Tracking:

GFP’s intrinsic fluorescence allows for direct visualization of protein expression in live cells.
Useful during transfection optimization and stable cell line development.

2. High Affinity Binding:

Nanobodies bind GFP with picomolar affinity, providing high specificity and minimal background binding.

3. Regenerability:

Nanobody-resins can be reused multiple times without significant loss of performance, making them cost-effective.

II Limitations and Solutions:

1. Challenging Elution:

The strong nanobody:GFP interaction can prevent efficient elution of the recombinant protein.
To resolve this, a protease recognition site (e.g., TEV, HRV 3C) should be inserted between the GFP tag and the protein of interest.

2. Proteolytic Cleavage:

While slower than ligand-based elution, site-specific protease treatment ensures effective protein release with high yield and purity.

The use of fluorescent proteins like GFP, combined with nanobody-based affinity matrices, is a versatile and efficient method for purifying recombinant proteins, particularly in mammalian systems, where visualization and purity are crucial.

10.Conclusion

Mammalian expression systems offer a powerful platform for producing recombinant proteins that are often challenging to express in simpler hosts. Advances in scalability, gene delivery, and purification have made large-scale production more accessible. These systems allow for the expression of complex human proteins in a near-native environment, facilitating the study of structure, function, and post-translational modifications. When combined with tools like mass spectrometry, cryo-EM, and X-ray crystallography, they enable high-resolution insights into macromolecular complexes. As their adoption grows, the full potential of mammalian systems is only beginning to be realized.
